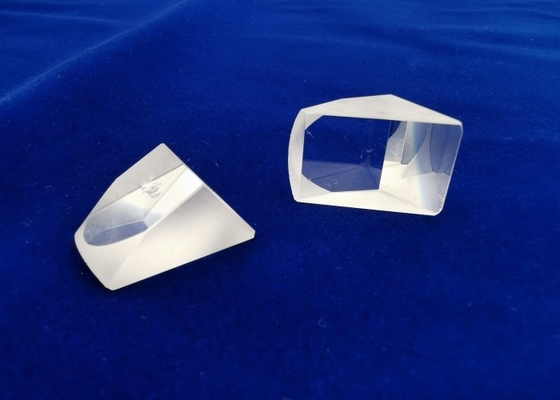

OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism

OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism

  • High Light

    groove prism

    ,

    sapphire prism

  • Product Name
    Ladder Type Prism
  • Production Mode
    Design / Custom Made OEM / ODM
  • Material
    ZF6
  • Dimensional (mm)
    15x12x4.5 -0.1
  • Surface Quality
    40-20
  • Optical Surface
    Ra<0.05um
  • Coating Specification
    AL+AF @420-700nm RAVG>85%
  • Color
    Colorless
  • Place of Origin
    Chengdu,China
  • Brand Name
    VSTAR
  • Certification
    ROHS/SGS
  • Model Number
    VS.OP.GR.011
  • Minimum Order Quantity
    500-1000PCS
  • Price
    Negotiation
  • Packaging Details
    Vacuum packing
  • Delivery Time
    Mold Lead Time: 25-60 days /Product Delivery Time:30days after received payment
  • Payment Terms
    T/T
  • Supply Ability
    150000Pcs/order/30days

OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism

OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism





Company Services:

Specializing in the production of various optical components. Aspheric optical glass light components,prism,lens,dome cover,perforated special shaped parts.precision mold lens,etc.our raw material including colored glass quarts,rare earth.etc..





Product Parameter



Material ZF6
Color Colorless
Length (mm) 15.0
Width (mm) 12.0
Dimensional Tolerance (mm) -0.1
Thickness (mm) 4.5
Thickness Tolerance (mm) ±0.05
Angle Tolerance (°) ±0.1
Optical surface Ra<0.05um
Surface Quality 40-20
Coating Specification @420-700nm RAVG>85%
Coating AL+AF
ROHS Compliant





Products introduction:

This glass prism used for refractor index measuring.



Temperature tolerance:

 -40°+300°.



Application area:

foods,fruits,drinks etc.and industry liquid measuring online.



Production process:

glass working/molding glass working









OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism 0













OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism 1











OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism 2











Packaging:



OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism 3





Detailed Images



OEM /ODM Ladder Type Prism ZF6 Colorless AL+ AF Coating Right Angle Prism 4
