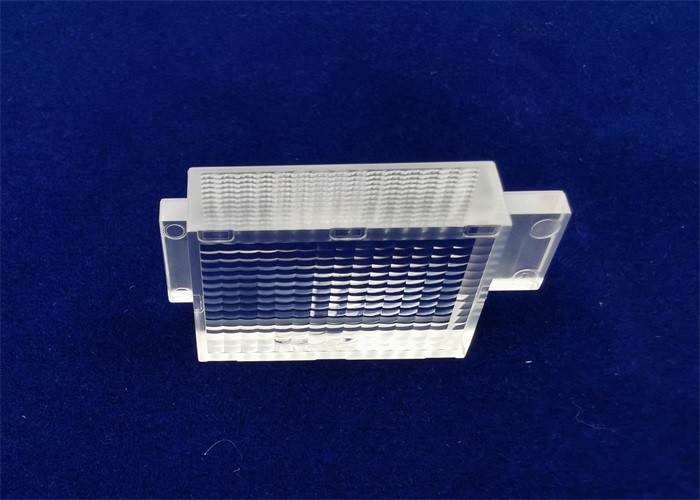

Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm

Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm

  • High Light

    led lens array

    ,

    multi lens array

  • Product Name
    Fly's-eye Lens
  • Production Mode
    Design / Custom Made OEM / ODM
  • Material
    PMMA
  • Dimensional (mm)
    24.8x16x7.78 ±0.05
  • Surface Quality
    80-50
  • Coating Specification
    AR<0.5%@420-680nm,
  • Color
    Colorless
  • Transparancy
    93%
  • Place of Origin
    Chengdu,China
  • Brand Name
    VSTAR
  • Certification
    ROHS/SGS
  • Model Number
    VS.OP.AL.019
  • Minimum Order Quantity
    500-1000PCS
  • Price
    Negotiation
  • Packaging Details
    Vacuum packaging
  • Delivery Time
    Mold Lead Time: 25-60 days /Product Delivery Time:30days after received payment
  • Payment Terms
    T/T
  • Supply Ability
    150000Pcs/order/30days

Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm

Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm





Company Services:

We provide tailor-maid optical products services to our customers,specializing in the manufacture of precision optical components more than ten years

experience in optical products manufacturing.

Vstar Optic company is a combination of production and trade,industry and trade integration business.We provide OEM and also ODM for customrs.

Our high precision injection machines are Japanese Fanuc and Sumitomo electric optical injection machines ranging from 30MT,50MT to 100MT.




1.Products introduction:Raw material:optical grade PMMA,Temperature tolerance:-35°+100°,refractive index:1.48



2.Application area:Portable projector, stage lightning,lighting condenser system



3.Production process:Injection molding plastic parts +AR coating.





Product Parameter



Material PMMA
Color Colorless
Length (mm) 24.8
width(mm) 16.0
Dimensional Tolerance (mm) ±0.05
Thickness (mm) 7.78
Thickness Tolerance (mm) ±0.05
Surface Accuracy (λ) PV <4um
Surface Roughness Ra<0.025um
Surface Quality 80-50
Flatness 0.02
Coating Specification R<0.5%@420-680nm,
Coating AR
ROHS Compliant
Transparancy 93%





Detailed Images



Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm 0







Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm 1











Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm 2











Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm 3













Design / Custom Made OEM / ODM Plastic Fly's Eye Lens Colorless PMMA 24.8x16x7.78 Coating AR<0.5%@420-680nm 4
