Design / Custom Made OEM / ODM Compound eye lens Colorless PC 71.8x71.8x2.55mm Dimensional

Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional
Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional

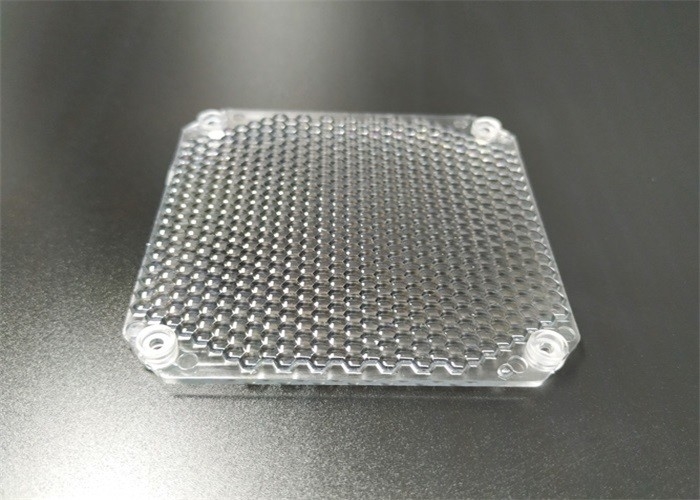

Large Image :  Design / Custom Made OEM / ODM Compound eye lens Colorless PC 71.8x71.8x2.55mm Dimensional

Product Details:

Place of Origin: Chengdu,China
Brand Name: VSTAR
Certification: ROHS/SGS
Model Number: VS.OP.AL.011

Payment & Shipping Terms:

Minimum Order Quantity: 500-1000PCS
Price: Negotiation
Packaging Details: Blister tray packaging
Delivery Time: Mold Lead Time:25-60 calendar days / Delivery Time:30 working days after received your payment
Payment Terms: T/T
Supply Ability: 150000Pcs/order/30days
Detailed Product Description
Product Name:: Compound Eye Lens PC Production Mode: Design / Custom Made OEM / ODM
Material: PC Color: Colorless
Dimensional(mm): 71.8x71.8x2.55 Surface Accuracy (λ): PV <30um Ra<30nm
Dimensional Tolerance (mm): ±0.1 Thickness Tolerance (mm): ±0.05
Coating Specification: AR Rave<0.5%,Rabs<0.8%@420-680nm
High Light:

compound eye lens

,

multi lens array

Design / Custom Made OEM / ODM Compound eye lens Colorless PC 71.8x71.8x2.55mm Dimensional





Company Profile:

We provide tailor-maid optical products services to our customers,specializing in the manufacture of precision optical components more than ten years

experience in optical products manufacturing.

Vstar Optic company is a combination of production and trade,industry and trade integration business.We provide OEM and also ODM for customrs.

Our high precision injection machines are Japanese Fanuc and Sumitomo electric optical injection machines ranging from 30MT,50MT to 100MT.






Products introduction:

Raw material:optical grade PC,Temperature tolerance:-40°+120°,refractive index:1.58



Application area:

Portable projector, stage lightning,lighting condenser system



Production process:

Injection molding plastic parts +AR coating.Design and manufacture micron standard optical precision mold and mold parts/inserts.Mold types are varied from LED lens,Electronic products, precision connector, plastic injection tooling,all precision non-standard mold manufacturing.

We also design,R&D,production,marketing and one-stop service.







Product Parameter



Material PC
Color Colorless
Length (mm) 71.8
width(mm) 71.8
Dimensional Tolerance (mm) ±0.1
Thickness (mm) 2.55
Thickness Tolerance (mm) ±0.05
Surface Accuracy (λ) PV <30um
Surface Roughness Ra<30nm
Surface Quality 80-50
Coating Specification Rave<0.5%,Rabs<0.8%@420-680nm
Coating AR
ROHS Compliant











Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional 0











Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional 1











Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional 2











Packaging:



Design / Custom Made OEM / ODM Compound eye lens  Colorless PC 71.8x71.8x2.55mm Dimensional 3





AFQ:



Q1: Are you a factory or trading company ?



A: We are perfessional optical lens factory located in Chengdu, China.



Q2: Where is your factory located ?



A: No.8th Building,No.188,West Kexing Road,Wenjiang District,Chengdu,SICHUAN,P.R.C.



Q3: Are there any stock or standard products?



A: We usually customize as per specific requirements, so please offer more detailed information about your requests, such as drawing(important), technical parameters, order quantity, use, material, photos, etc.



Q4: How about the samples policy?



A: We could send free samples for your reference, and the buyer please bear the delivery charge (through your express account for freight collect, or transfer the delivery charge to us for prepaid at your convenience). For some expensive samples, samples cost could be necessary.



Q5: If i place an order now, how long would it be before i got delivery ?



A: It would largely depend on the size of the order and the items you want.
