Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses

China SICHUAN VSTAR OPTICAL TECHNOLOGY CO.,LTD certification
China SICHUAN VSTAR OPTICAL TECHNOLOGY CO.,LTD certification
We got stable quality, competitive price, fast treatment,service in time and professional technical communication...

—— John

I'm Online Chat Now

Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses

Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses
Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses

Large Image :  Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses

Product Details:

Place of Origin: Chengdu,China
Brand Name: VSTAR
Certification: ROHS/SGS
Model Number: VS.OP.SP.007

Payment & Shipping Terms:

Minimum Order Quantity: 500-1000PCS
Price: Negotiation
Packaging Details: A single plastic bag packaging
Delivery Time: Mold Lead Time:25-60 calendar days / Delivery Time:30 working days after received your payment
Payment Terms: T/T
Supply Ability: 150000Pcs/order/30days
Detailed Product Description
Product Name: Ø70-M LED Reflector Production Mode: Design / Custom Made OEM / ODM
Material: PC Color: Colorless
Diameter (mm): Ø70 ±0.2 Clear Aperture (%): Ø19.6
Surface Roughness: Ra <0.05um Coating Specification: AR@450~650nm,Visible>92%
High Light:

infraed reception lens

Design / Custom Made OEM / ODM Ø70-M LED Reflector Lamp Cup PC Colorless Ø19.6% Clear Aperture





Products introduction: All kinds of lighting condenser system.



Application area:Public places,Metro,high-speed railway,Shopping mall,LED Light,water bottom light,courtyard view light,tunnel light,miner’s light,desk lamp, street light.etc.



Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses 0





Product Parameter



Material PC
Color Colorless
Diameter (mm) Ø70
Dimensional Tolerance (mm) ±0.2
Highly (mm) 32.8
Clear Aperture (%) Ø19.6
Thickness (mm) 2.1
Thickness Tolerance (mm) ±0.1
Surface Roughness Ra <0.05um
Surface Quality 60-40
Coating Specification @450~650nm,Visible>92%
Coating AR
ROHS Compliant
Transparancy 89%





Detailed Images

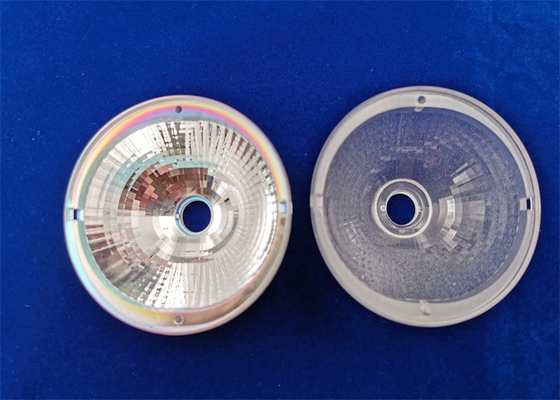

Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses 1



Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses 2



Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses 3



Packaging:



Design / Custom Made Ø70-M LED Reflector Lamp Cup PC Plastic Optical Lenses 4
