Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling

Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling

  • High Light

    90% Transparency IR Filter Window

    ,

    57.9*38.32*0.15mm IR Filter Window

  • Product Name
    IR-Filter
  • Production Mode
    Design / Custom Made OEM / ODM
  • Material
    PC
  • Dimensional (mm)
    57.9x38.32x1.2
  • Dimensional Tolerance (mm)
    ±0.15
  • Surface Quality
    60-40 Ra ≤50nm
  • Color
    Black
  • Transparancy
    90%
  • Place of Origin
    Chengdu, China
  • Brand Name
    VSTAR
  • Certification
    ROHS/SGS
  • Model Number
    VS.OP.WI.001
  • Minimum Order Quantity
    500-1000PCS
  • Price
    Negotiation
  • Packaging Details
    Electrostatic film packaging,cartons pack
  • Delivery Time
    Mold Lead Time: 25-60 days /Product Delivery Time:30days after received payment
  • Payment Terms
    T/T
  • Supply Ability
    150000Pcs/order/30days

Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling

Design / Custom Made OEM / ODM IR Filter PC Black Window Of Infrared Emission And Receiption





I. Product manufacture:

This is an IR-Filter window that injectioned by precision injection machine and by molding.

Raw material is BAYER black pc.

The dimension is 57.9*38.32*0.15(mm).

The surface roughness is ≤50nm.



II. Mold

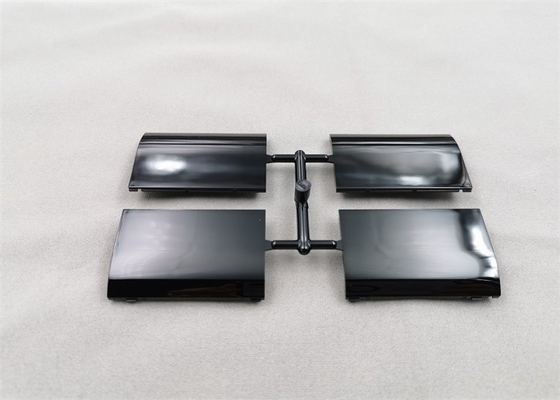

This mold is 4 cavities and with optical surface of the window.



III. Application

It is a window of infrared emission and receiption.



IV. Product advantage

This plasttic window is very stable of mold injection of batch manufacturing. It is not only stable with good quality but also cheap price and good service.





Product Parameter



Material PC
Colour Black
Length (mm) 57.9
width(mm) 38.32
Dimensional Tolerance (mm) ±0.15
Thickness (mm) 1.2
Thickness Tolerance (mm) ±0.10
Surface Roughness Ra ≤50nm
Flatness 0.3
Surface Quality 60-40
ROHS Compliant
Transparancy 90%





Company Services:

We provide tailor-maid optical products services to our customers,specializing in the manufacture of precision optical components more than ten years

experience in optical products manufacturing.

Vstar Optic company is a combination of production and trade,industry and trade integration business.We provide OEM and also ODM for customrs.

Our high precision injection machines are Japanese Fanuc and Sumitomo electric optical injection machines ranging from 30MT,50MT to 100MT.



Design and manufacture micron standard optical precision mold and mold parts/inserts.Mold types are varied from LED lens,Electronic products, precision connector, plastic injection tooling,all precision non-standard mold manufacturing.

We also design,R&D,production,marketing and one-stop service.







Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 0













Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 1













Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 2













Packaging:



Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 3Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 4

Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 5





Detailed Images



Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 6



Max 50nm Surface Roughness 90% Transparency IR Filter Window Plastic Injection Tooling 7
